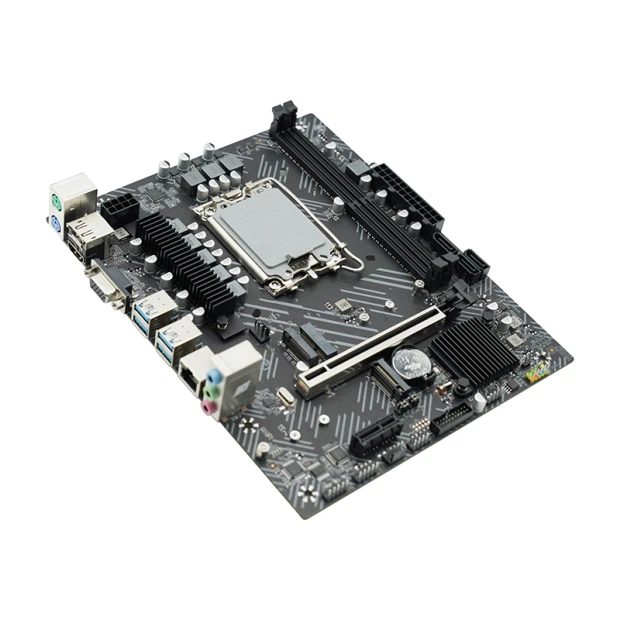

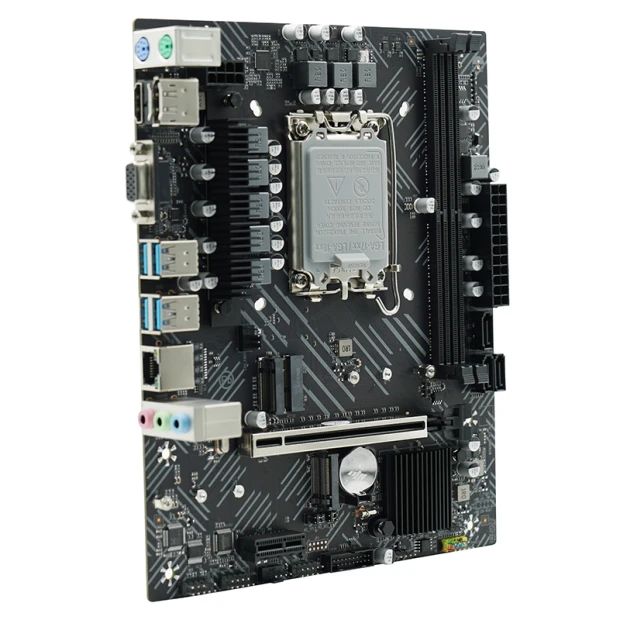

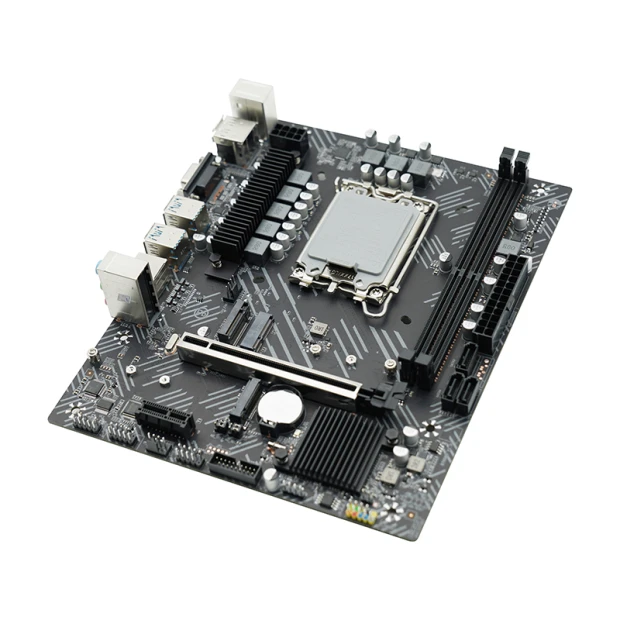

Afox B760D5-MA-V4 DDR5 Intel Motherboard
Key Specification
‣ Chipset - Intel B760
‣ Sockets Supported - LGA1700
‣ Supported CPU - Intel 12th, 13th, 14th Generation Core i9, Core
i7, Core i5, Core i3, Pentium, Celeron Processors
‣ Generation – 12th/13th/14th
‣ Memory Slot - 2
‣ Memory Max - 64GB
‣ Form Factor - Micro-ATX
Product Specification
|
Brand |
Afox |
|
Model |
Afox B760D5-MA-V4 |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Built-in
Processor: Unmentioned Supported
CPU : Intel 12th, 13th, 14th Generation Core i9, Core i7, Core i5, Core i3,
Pentium, Celeron Processors Generation
: 12th/13th/14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 6400(O.C.)/ 6200(O.C.)/
6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000 MHz
DIMM. Memory Channel: Dual Memory Slot: 2 Memory Max: 64GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion Slot Details 2 x M.2
Slot (1 x M.2 Support PCIe NVMe Gen4 x4 & SATA3 SSD) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: Intel HD Graphics support Multi-GPU Support: Unmentioned PCI Express Slot: 1 x PCI Express x16 4.0
slot, 1 x PCI Express x1 slot, 1 x Mini PCI-E Slot (Supports 4G/WIFI Module) |
|
Audio
& Video |
Audio
Chipset: Realtek 662/897 Audio
Channel - 6 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111 LAN Speed (Mbps): 10/100/1000Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 4 x USB 3.0 Type-A VGA
Port: 1 DVI
Port: 0 HDMI
Port: 1 DisplayPort
(DP): 1 IDE
Port: Unmentioned SATA
Port: 3 x SATA Thunderbolt:
Unmentioned TPM
Port: Unmentioned |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: Unmentioned RGB Connector: Unmentioned Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / 11 Compatible
Products: Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel
Processor. |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Afox
B760D5-MA-V4 Micro-ATX Motherboard
The Afox B760D5-MA-V4 is a
feature-packed Micro-ATX motherboard designed for Intel 12th, 13th,
and 14th Generation Core processors. Equipped with the Intel B760
chipset and support for DDR5 memory, it is ideal for users seeking
high performance and reliability for their systems.
Features
• Processor Compatibility: Supports Intel Core i9, i7, i5, i3, Pentium, and Celeron
processors from the 12th, 13th, and 14th generations (LGA1700
socket).
• Chipset: Intel B760 chipset for balanced performance.
• Memory Support: Dual-channel DDR5 memory up to 6400 MHz (OC),
with a maximum capacity of 64GB.
• Audio: Realtek 662/897 codec for 6-channel high-definition
audio.
Storage
Support
• M.2 Slots:
2 x M.2 slots:
- 1 x M.2 slot supports PCIe NVMe Gen4 x4 SSDs
- 1 x M.2 slot supports SATA3 SSDs
• SATA Ports:
3 x SATA 6Gb/s ports for additional storage options.
Expansion
and Graphics
• PCIe Slots:
1 x PCIe 4.0 x16 slot
1 x PCIe x1 slot
1 x Mini PCI-E slot (supports 4G/WIFI module)
• Integrated Graphics:
Supports Intel HD Graphics for basic graphics tasks.
• Multi-GPU Support: Not specified.
Connectivity
Options
• USB Ports:
4 x USB 3.0 Type-A
• Video Outputs:
1 x VGA
1 x HDMI
1 x DisplayPort (DP)
Network
and Audio
• LAN Chipset: Realtek RTL8111 for stable wired networking.
• LAN Speed: 10/100/1000 Mbps.
Design
and Build
• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Color Scheme: Black
Compatibility
• Supported Operating System: Windows 10 / Windows 11.
• Compatible Products: Compatible with LGA1700 socket processors
from the 12th, 13th, and 14th Intel Core series.
Warranty
Information
• Warranty: 3 years warranty.
Price
and Availability
Available at Computer Village
Agrabad, Chattogram, Bangladesh, the Afox B760D5-MA-V4 offers a
solid foundation for a high-performance build with a focus on DDR5 memory
and Intel Core processors.
