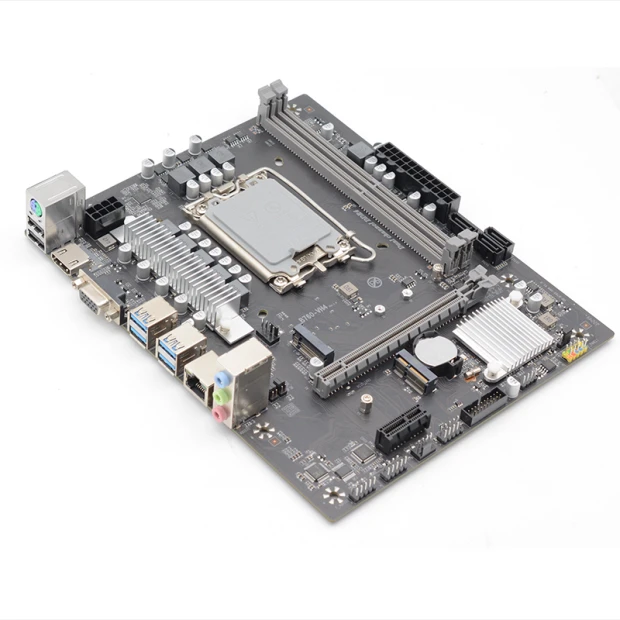

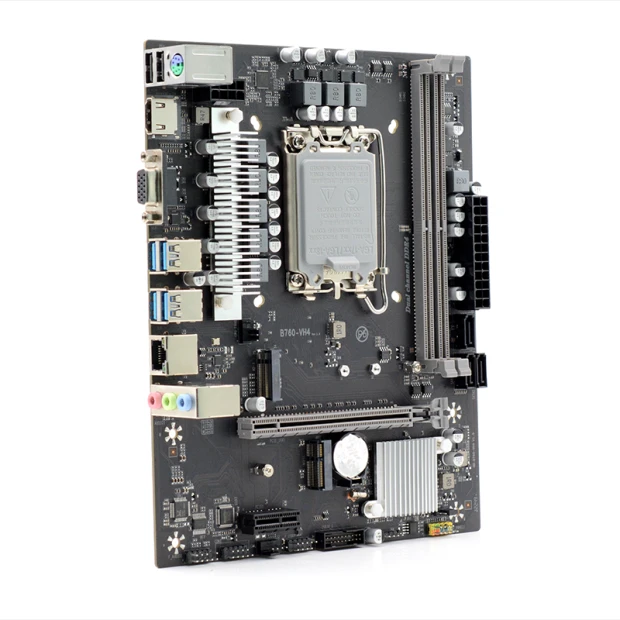

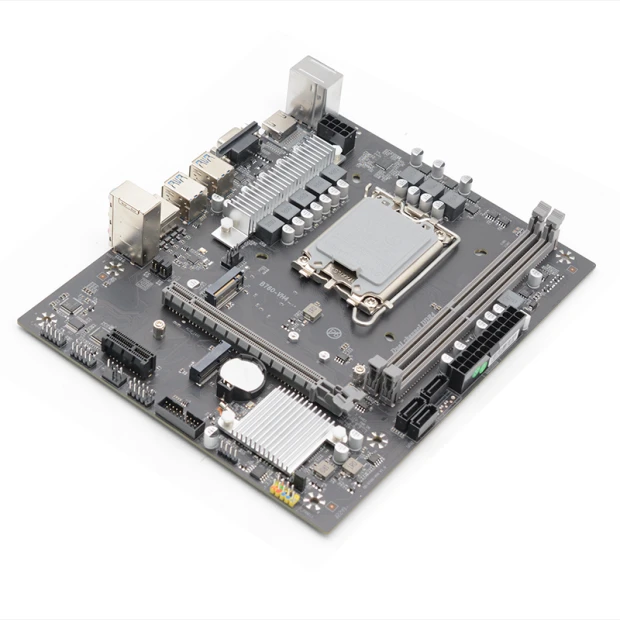

Afox B760D4-MA-V4 Micro-ATX Motherboard

The Afox B760D4-MA-V4 is a Micro-ATX motherboard built for users looking to upgrade to Intel 12th, 13th, or 14th generation processors. Featuring the Intel B760 chipset, this motherboard is optimized for DDR4 memory and offers flexibility and power for both gaming and professional builds.

Features

• Processor Compatibility:
Supports Intel Core i9, i7, i5, i3, Pentium, and Celeron processors from the 12th, 13th, and 14th generations (LGA1700 socket).
• Chipset: Intel B760 chipset provides a solid base for system performance.
• Memory Support:
Dual-channel DDR4 memory up to 3600 MHz (OC), with a maximum capacity of 64GB.
• Audio:
Realtek 662/897 codec for 6-channel audio output.

Storage and Expansion

• M.2 Slots:
1 x M.2 slot supporting PCIe NVMe Gen4 x4 and SATA3 SSDs for faster storage options.
• SATA Ports:
3 x SATA 6Gb/s ports for additional storage drives.

Graphics and Expansion

• PCIe Slots:
1 x PCIe 4.0 x16 slot for high-speed graphics or expansion cards.
1 x PCIe x1 slot.
1 x Mini PCI-E slot (supports 4G/WIFI module).

• Integrated Graphics:
Supports Intel HD Graphics for basic graphical needs.
• Multi-GPU Support: Not mentioned.

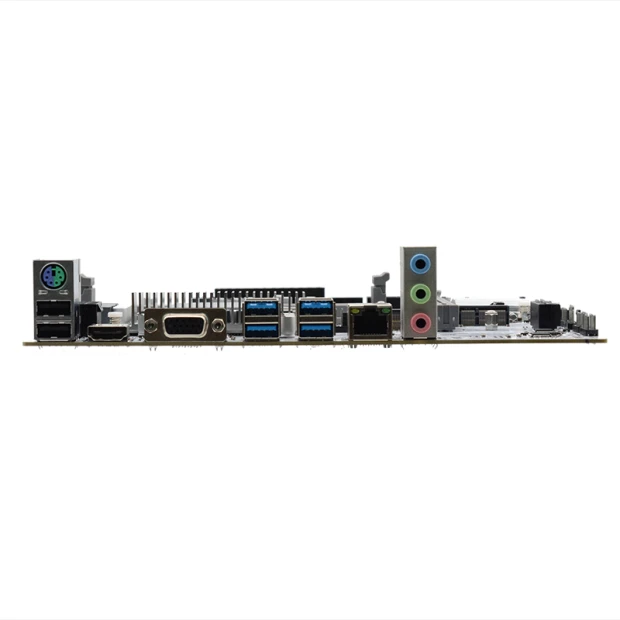

Connectivity Options

• USB Ports:
4 x USB 3.0 Type-A
2 x USB 2.0 Type-A
• Video Outputs:
1 x VGA
1 x HDMI

Network and Audio

• LAN Chipset:
Realtek RTL8111 for reliable wired networking.
• LAN Speed: 10/100/1000 Mbps.

Design and Build

• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Color Scheme: Black

Compatibility

• Supported Operating System: Windows 10 / Windows 11.
• Compatible Products: Compatible with LGA1700 socket processors from the 12th, 13th, and 14th Intel Core series.

Warranty Information

• Warranty: 3 years warranty.

Price and Availability

The Afox B760D4-MA-V4 motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh, offering a great balance of performance for Intel Core processors with DDR4 memory and PCIe Gen4 support for a range of system builds.
