Afox B550-MA-V2 DDR4 AMD Motherboard
Key Specification
Product Specification
|
Brand |
Afox |
|
Model |
Afox B550-MA-V2 |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B550 Sockets
Supported: AM4 Built-in
Processor: Unmentioned Supported
CPU : Supports AMD Ryzen 5000 Series/Ryzen 5000 G Series/Ryzen 4000 G Series
and Ryzen 3000 Series processors Generation
: N/A |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 2133 / 2400 /2666 / 2800(O.C) /
3000(O.C) / 3200(O.C) MHz Memory Channel: Dual Memory Slot: 4 Memory Max: 128GB Optane Memory Support: Unmentioned |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion Slot Details 1 x M.2
(PCIe NVMe Gen3 x4 ) |
|
Graphics Info |
Graphics: Integrated Graphics Chipset: AMD Vega Graphics support Multi-GPU Support: Unmentioned PCI Express Slot: 1 x PCI Express x16 4.0
slot, 1 x PCI Express x 4 slot, 1 x PCI Express x 1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek 662 On Board Audio
Channel - 6 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111 1000Mbps
Ethernet on board LAN Speed (Mbps): 10/100/1000Mbps WiFi: Unmentioned WiFi Technology: Unmentioned Bluetooth: Unmentioned |
|
Ports Data |
USB
Port: 4 x USB 3.0 Type-A VGA
Port: 1 DVI
Port: 1 HDMI
Port: 1 DisplayPort
(DP): Unmentioned IDE
Port: Unmentioned SATA
Port: 4 x SATA Thunderbolt:
Unmentioned TPM
Port: Unmentioned |
|
Technical Data |
Back-Connect Design: Unmentioned Cable Management: Front Heatsink: Unmentioned FireWire: Unmentioned CrossFire Support: Unmentioned Sli Support: Unmentioned RGB Support: Unmentioned RGB Connector: Unmentioned Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / 11 Compatible
Products: Compatible with AM4 Sockets Ryzen 5000 Series/Ryzen 5000 G
Series/Ryzen 4000 G Series and Ryzen 3000 Series processors. |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Afox
B550-MA-V2 Micro-ATX Motherboard

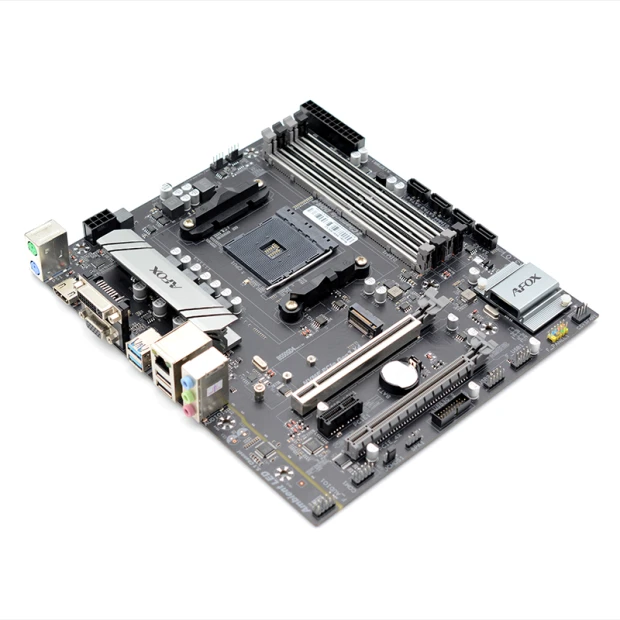

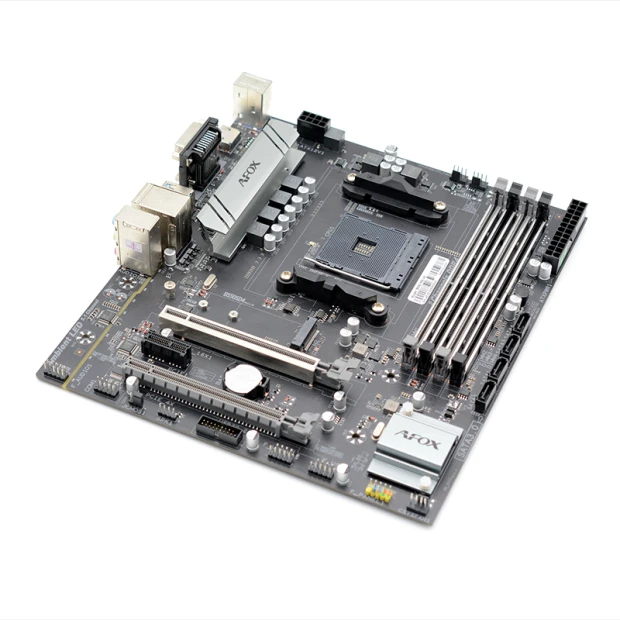

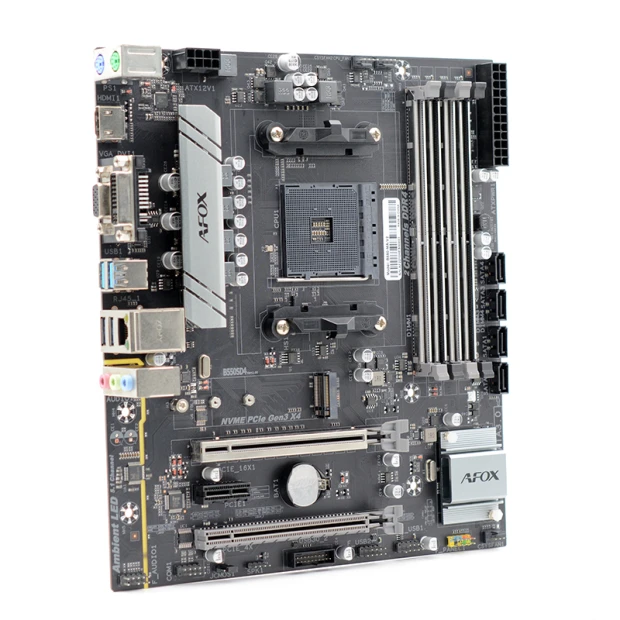

The Afox B550-MA-V2 is a
versatile Micro-ATX motherboard designed for AMD Ryzen processors.
With support for Ryzen 3000, 4000, and 5000 series processors, this
motherboard offers great flexibility for building high-performance systems with
DDR4 memory and solid expansion options.
Features
• Processor Compatibility:
Supports AMD Ryzen 3000, 4000 G, and 5000 series processors (AM4
socket).
• Chipset: AMD B550 chipset for reliable performance and support
for next-gen features.
• Memory Support:
Dual-channel DDR4 memory up to 3200 MHz (OC), with a maximum
capacity of 128GB.
• Audio:
Realtek 662 onboard codec with 6-channel audio support.
Storage
and Expansion
• M.2 Slot:
1 x M.2 PCIe NVMe Gen3 x4 slot for high-speed storage.
• SATA Ports:
4 x SATA 6Gb/s ports for additional storage drives.
Graphics
and Expansion
• PCIe Slots:
1 x PCIe 4.0 x16 slot for high-performance graphics cards.
1 x PCIe x4 slot.
1 x PCIe x1 slot for expansion cards.
• Integrated Graphics:
Supports AMD Vega Graphics for basic graphical tasks.
• Multi-GPU Support: Not mentioned.
Connectivity
Options
• USB Ports:
4 x USB 3.0 Type-A
• Video Outputs:
1 x VGA
1 x DVI
1 x HDMI
Network
and Audio
• LAN Chipset:
Realtek RTL8111 for 1000 Mbps Ethernet.
• LAN Speed: 10/100/1000 Mbps.
Design
and Build
• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Color Scheme: Black
Compatibility
• Supported Operating System: Windows 10 / Windows 11.
• Compatible Products: Compatible with AM4 socket Ryzen 3000, 4000 G,
and 5000 series processors.
Warranty
Information
• Warranty: 3 years warranty.
Price
and Availability
The Afox B550-MA-V2
motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh,
providing a solid option for building AMD-based systems with DDR4 memory
and PCIe NVMe storage.
