PRODUCT DESCRIPTION:

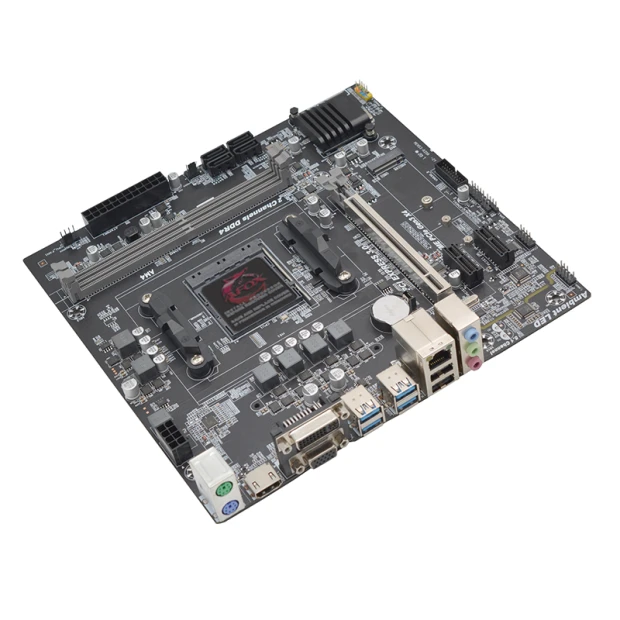

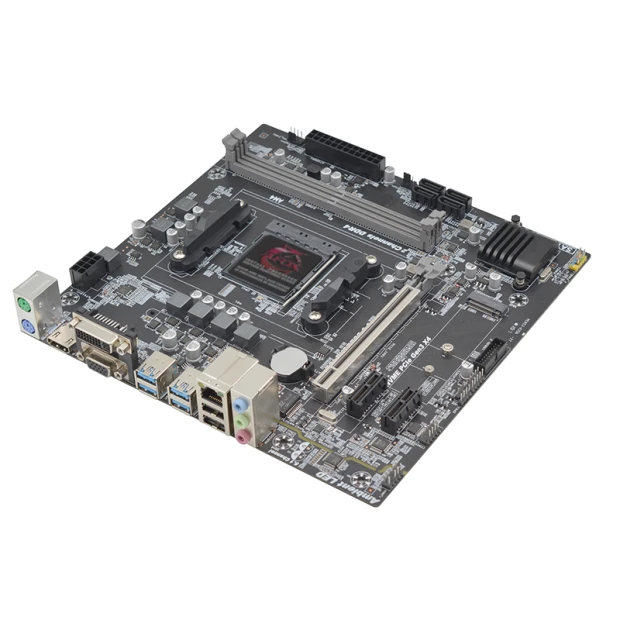

Afox B450-MA-V2 motherboard is a highly versatile and cost-effective choice for users building or upgrading their PC systems. Designed to provide a stable and efficient platform, this motherboard offers a range of features ideal for both casual users and gamers looking for high performance at an affordable price point.

Processor and Chipset Compatibility

Equipped with the AMD B450 chipset, the Afox B450-MA-V2 motherboard supports a wide variety of AMD Ryzen™ processors, including the 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors. It features the AM4 socket, allowing users to take advantage of the latest AMD processors, ensuring compatibility with current and future hardware advancements.

Memory Support

This motherboard supports 2 x DDR4 memory slots, with a maximum system memory capacity of 64GB, offering ample room for heavy multitasking, gaming, and content creation. The memory slots support various memory speeds ranging from 2133 MHz to 3200 MHz (O.C.), allowing users to fine-tune their memory setup for optimal performance. The dual-channel architecture ensures efficient data flow between the memory and processor, improving overall system responsiveness.

Storage Options

The Afox B450-MA-V2 offers plenty of storage options to meet the needs of modern users. It features 4 x SATA3 connectors, supporting a variety of hard drives and SSDs for traditional storage. Additionally, the motherboard includes 1 x M.2 slot, which supports both PCIe NVMe Gen3 x4 and SATA3 devices, providing faster data transfer speeds for users looking to install high-performance SSDs. This dual support for storage types ensures both flexibility and speed for your storage needs.

Graphics and Display Outputs

For video output, the Afox B450-MA-V2 motherboard provides a variety of display ports. It includes an HDMI port, D-Sub (VGA) port, and a DVI port, allowing users to connect multiple monitors and take advantage of different display technologies. Whether you're building a basic office machine or a gaming rig, the diverse graphics outputs will accommodate a range of displays for any use case.

Networking and Connectivity

Equipped with a Realtek RTL8111 1000Mbps Ethernet controller, the Afox B450-MA-V2 motherboard ensures a fast and stable internet connection for online gaming, browsing, and streaming. With Gigabit LAN, you can experience faster speeds and improved network reliability, ensuring smooth communication between devices and minimal latency during online activities.

Expansion and Internal Connectors

The motherboard features a PCI Express x16 slot for installing a dedicated graphics card, ensuring better gaming and graphical performance. In addition, there are 2 x PCI Express x1 slots for additional expansion cards, such as sound cards or network adapters. Internal connectivity options include 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x M.2 connector, 4 x SATA 6Gb/s connectors, and headers for USB, audio, and front panel connections, providing a broad range of options for building a customized system.

Back Panel Ports

On the back panel, users will find 1 x HDMI port, 1 x D-Sub (VGA) port, 1 x DVI port, 4 x USB 3.0 ports, 2 x USB 2.0 ports, 1 x RJ-45 LAN port, and 3 x HD audio jacks for full audio functionality. These ports offer convenient connectivity for peripherals, audio devices, and networking, ensuring ease of use for a wide range of devices.

Special Features

The Afox B450-MA-V2 motherboard supports AMD Dual Graphics Technology, which allows users to combine an AMD Radeon™ GPU with an integrated graphics processor for enhanced graphics performance. This feature is perfect for users who want to boost their system's graphical capabilities without needing a dedicated graphics card.

BIOS and Software

The motherboard uses a UEFI BIOS, providing a modern, user-friendly interface for configuring system settings. Additionally, the board comes with essential driver software for easy installation and setup, ensuring smooth system operation from the start.

Warranty

The Afox B450-MA-V2 motherboard is backed by a 2-year warranty, offering peace of mind and support for your system build.

With its excellent performance, versatile connectivity options, and support for the latest AMD processors, the Afox B450-MA-V2 motherboard is an ideal choice for users looking to build a reliable and powerful PC. Whether for work, entertainment, or gaming, this motherboard delivers a solid foundation for a wide range of computing tasks.
