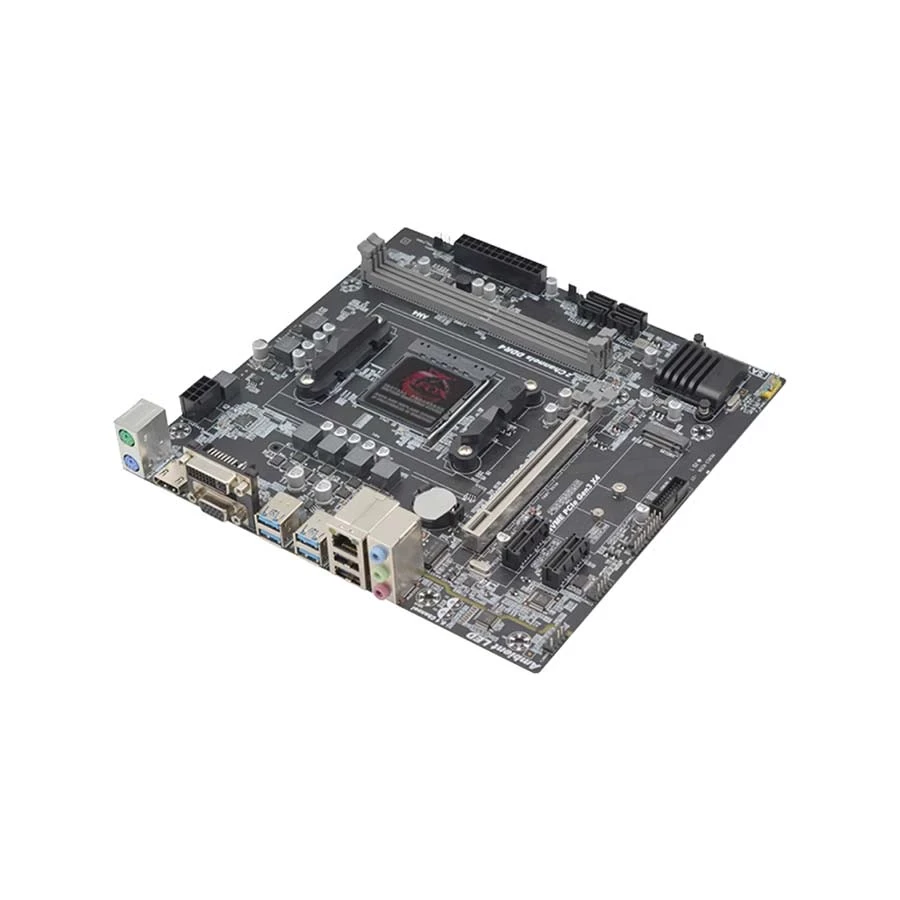

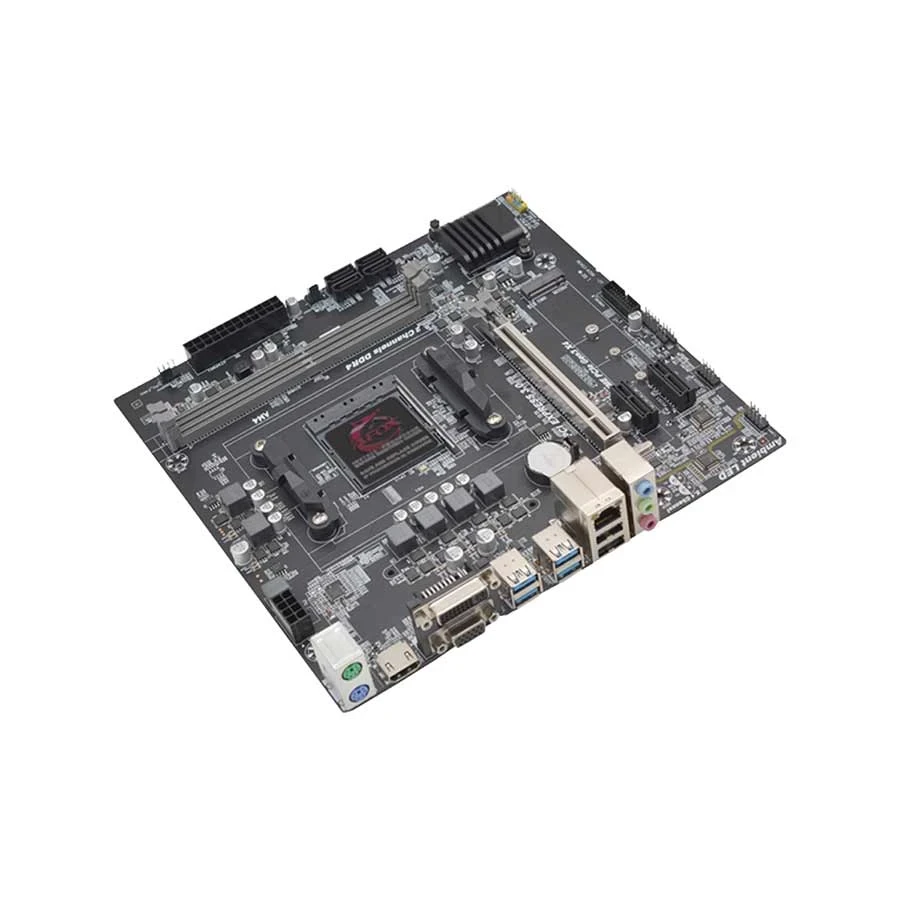

Afox B450-MA-V2 Micro-ATX Motherboard

The Afox B450-MA-V2 motherboard is a Micro-ATX motherboard that features the AMD B450 chipset and is designed for users seeking compatibility with AMD Ryzen 5000 Series, Ryzen 4000 G Series, and Ryzen 3000 Series processors. It's a solid choice for users looking to build a budget-friendly AMD-based system without compromising on performance.

Features

• Processor Compatibility:
Supports AMD Ryzen 5000 Series, Ryzen 4000 G Series, and Ryzen 3000 Series processors with AM4 socket.
• Chipset: AMD B450 chipset for reliable performance.
• Memory Support:
Dual-channel DDR4 memory up to 3200 MHz (OC) with a maximum capacity of 64GB.
• Audio:
Onboard Realtek 662 audio chipset with 6-channel audio support.

Storage and Expansion

• M.2 Slot:
1 x M.2 PCIe NVMe Gen3 x4 & SATA3 for high-speed storage.
• SATA Ports:
4 x SATA 6Gb/s ports for additional storage devices.

Graphics and Expansion

• PCIe Slots:
1 x PCIe 3.0 x16 slot for discrete graphics cards.
2 x PCIe x1 slots for expansion cards.

• Integrated Graphics:
Supports AMD Vega Graphics for integrated graphics performance.
• Multi-GPU Support: Not mentioned.

Connectivity Options

• USB Ports:
4 x USB 3.0 Type-A
2 x USB 2.0 Type-A
• Video Outputs:
1 x VGA
1 x DVI
1 x HDMI

Network and Audio

• LAN Chipset:
Realtek RTL8111 for 1000 Mbps Ethernet connectivity.
• LAN Speed: 10/100/1000 Mbps.

Design and Build

• Form Factor: Micro-ATX
• Power Consumption: Approx. 60W
• Color Scheme: Black

Compatibility

• Supported Operating System: Windows 10 / Windows 11
• Compatible Products: Compatible with AM4 socket processors (Ryzen 5000 Series, Ryzen 4000 G Series, Ryzen 3000 Series).

Warranty Information

• Warranty: 3 years warranty.

Price and Availability

The Afox B450-MA-V2 motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh. It’s a great option for building an affordable AMD Ryzen-based system.
